- Features:Lacquered with imported PVDF materials assure the easy-clean and durable dirt resistance qualities,panama base fabrics give high tensile and tear strengths.Good flame retardant,anti-UV,anti-mildew,high abrasion resistance.

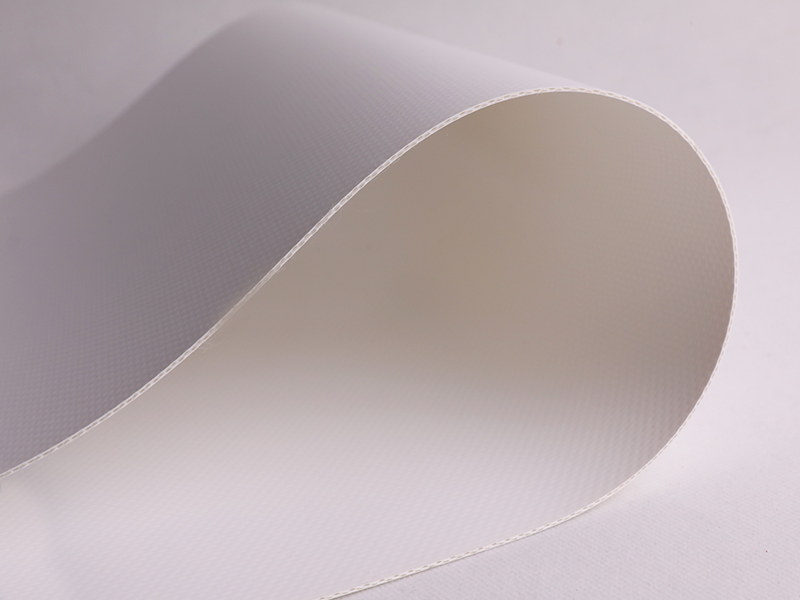

PVDF Membranes materials
More Information
|
Technical |
Technical data |
detection basis |
|
Base Fabric |
100% polyester |
DIN EN 60001 |
|
Total Weight(gsm/㎡) |
1500gsm/㎡ |
DIN EN ISO 2286-2 |
|
Total Thickness(mm) |
1.17mm |
|
|
Tensile Strength(Warp/Weft)(N/5cm) |
10500/10000N/5cm |
DIN 53354 |
|
Tear Strength(Warp/Weft)(N) |
1500/1500N |
DIN 53363 |
|
Adhesion(N/5cm) |
>130N/5cm |
DIN 53357 |
|
Threshold Temperature |
-30℃/+70℃ |
DIN EN 1876-2 |
|
Surface Treatment |
PVDF/Acrylic |
|
|
Flame Retardancy(can be customized) |
B1 |
GB8624-2012 |
